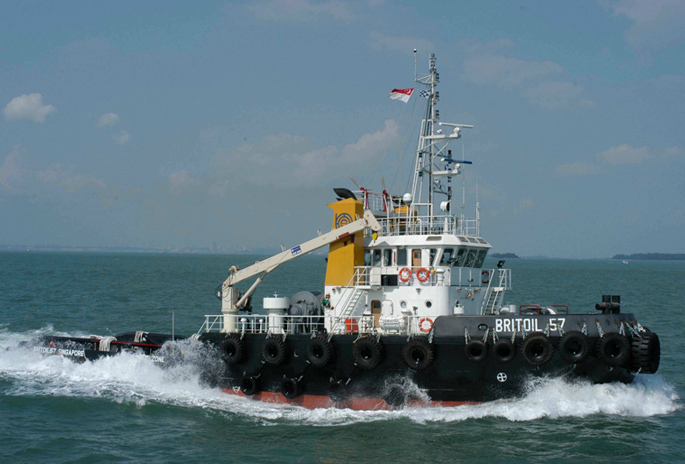

Anchor Handling/Tow Tugs Britoil 57
| Name of Vessel | Britoil 57 | Registry | Singapore |
| Year of Delivery | 2007 | Type | Ocean Going / Anchor Handling / Towing Tug |
| Classification | ABS + A1, Towing Vessel, (E), + AMS | Dimensions | 40m x 11.4m x 4.95m |
| GRT / NRT / DWT | 497T / 149T / 300T | Minimum Working Draft | 4.4m / 4.9m (Max) |
| Clear Deck Space (Main Deck) | 16.5m x 8m | Speed | 12.5 knots |
| Deck Strength | 5.0 mt/m² | ||
| Bollard Pull | 60T | Endurance | 27 days |
| Accommodation | Fully air-conditioned for 18 men Complement: | Lifesaving | Comply with SOLAS requirements |
| Fuel (90%) | 1235 mt | External Firefighting | FiFi 1 |
| Fresh water | 80 mt | Freshwater Maker | 5 mt/day |
| Main Engines & Gearboxes | 2 x MAK 8M20 diesel engines producing 2100 bhp each @ 1000 rpm c/w 2 x WAF 2345 gearboxes, ratio 4.454:1 | Generators | 3 x 300 kW, 380/3/50, CAT, DITA 3408 diesel driven generators. |
| Main Engines Consumption | 13,500 litres MGO and 30 litres lube oil per 24 hours @ full power. 11,000 litres MDO and 26 litres lube oil per 24 hours @ economic cruising speed of 10 knots | Generator Consumption | 450 litres MGO and 10 litres lube oil per 24 hours |
| Propulsion | 2 x fixed propellers 2900mm diameter, manganese bronze in kort nozzles | Steering Gear | Electro hydraulic steering gear of 6T torque |
| Fuel Oil Purifier | Mitsubishi self cleaning fuel oil purifier SJ-700r | Lube Oil Purifier | Mitsubishi self cleaning lube oil purifier SJ-10F |
| Towing Pins & Sharkjaws | KARM FORK combination unit with 2 towing pins & 2 sharkjaws | Bow Thruster | Brunvoll 335hp 3.7T thrust |
| Anchor Windlass | Hydraulic 7.7T @ 0-14m/ minute BRATTVAAG | Anchors | 2 x 780kg stockless anchors |
| Anchor chain | 2 x 330m x 28mm diameter U2 steel stud link chain | Towing/Anchor winch |
BRATTVAAG double drum waterfall type SL75-2T hydraulic winch with remote controls in wheelhouse. 75T pull @ 0-11.2 m/min 35T pull @ 0-17m/min Wire Capacity :- 1000m x 52 mm diameter Brake holding :-140T |
|
Stern Roller (Size) SWL |
L-3.30m; Dia-1.77m 140 mt |
Wire Storage Reels | 2 x 9.2T line pull @ 0-26 m/min, storage reels will contain 1000m x 52mm dia |
| Crane | North American Crane model 45 TM-14M/2.6T. 2.6T @ 14m | Tugger Winch | 2 X BRATTVAAG 11T line pull @ 0-23m/min |
| Dispersant Booms | 2 x 8m dispersant booms fitted | ||
| Fendering | Flat doubler plates of 24†x 25mm cross section welded to side shell. Bow plate of approx 50mm thick section secured vertically | Cutting Equipment | Two bottles oxygen and one bottle acetylene c/w torch |
| Life rafts | 2 x 20 men | Radar | 1 x radar. Model FR1510 MK3 1 x radar. Model FR 2125 |
| Rescue Boat | 1 x 6 men | VHF | 2 x VHF/FM multi-channel marine radio telephones. FURUNO model FM-8500-25W |
| SSB | Radio console, FURUNO RC-1800-IT-25-250, 24V DC/220V AC c/w DSC & NBDP to meet GMDSS requirements. FURUNO SSB model FS-1562-25-250W-200chs | Weather Facsimile | 1 x FURUNO model FAX-207 |
| Gyro & Automatic Pilot | 1 set fitted. Gyro-Tokimec ES-110. Autopilot-Furuno model FAP-330 | Fire Monitors | 2 fixed foam/water fire monitors of 3000 litres/min each @ 120M head capacity. Capacity of Fire pump: 360 m3/hr |
| Other Navigation Equipment | 2 x INMARSAT-C, EPIRB, Radar Transponder, P.A. System, Navtex Receiver, GPS Navigator, Anemometer, Omni Direction TV Antenna, Echo Sounder, Battery Powered Telephone, Inmarsat M. | Sewage Treatment Plant | Taiko Kikai SBT-25 for 25 men |
